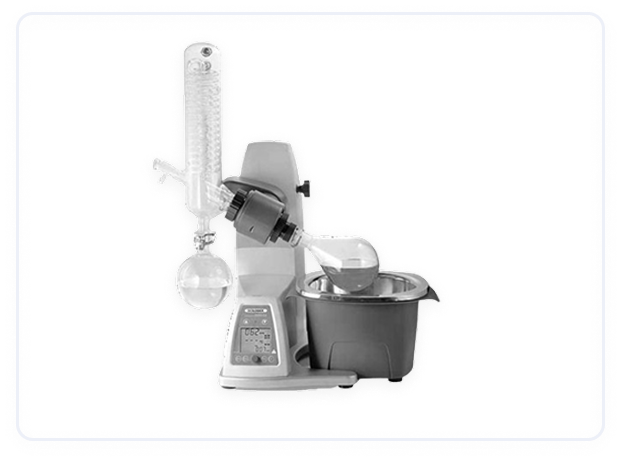

Rotary Evaporator

Key Features and Components :
Rotating Flask :
Function : Holds the sample solution and rotates to increase the surface area exposed to the heating element, enhancing the evaporation rate.

Material : Typically made from glass (e.g., borosilicate glass) to withstand heat and chemical interactions.
Heating Bath :
Purpose : Provides controlled heating to the rotating flask. The heating bath is typically water or oil-based and maintains a consistent temperature to facilitate solvent evaporation.

Temperature Control : Usually equipped with precise temperature controls to ensure optimal conditions for evaporation.
Condenser :
Function : Cools the vapor generated from the heated solution and condenses it into a liquid. The condensed solvent is then collected in a receiving flask.

Types : Can be a vertical or horizontal condenser, with the vertical type being more common.
Vacuum System :
Purpose : Reduces the pressure inside the system to lower the boiling point of the solvent, allowing it to evaporate at lower temperatures.

Components : Includes a vacuum pump and sometimes a vacuum controller to maintain the desired pressure.
Receiving Flask :
Function : Collects the condensed solvent from the condenser. It is typically located below the condenser and connected to it via a tubing system.

Material : Often made of glass to allow for easy monitoring and collection.
Control Panel :
Features : Includes controls for the rotation speed of the flask, temperature of the heating bath, and vacuum pressure.

User Interface : Provides a digital or analog interface for setting and monitoring parameters.
Cooling System :
Purpose : Some systems may include additional cooling mechanisms for the condenser to enhance the condensation process and improve solvent recovery.
