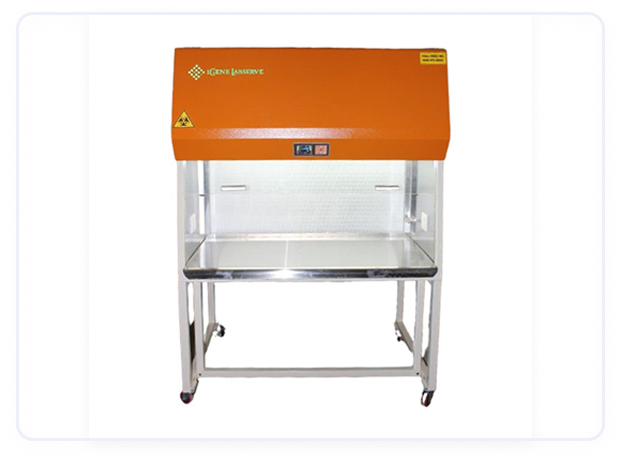

Laminar Air Flow Bench
A laminar air flow bench, often referred to as a laminar flow cabinet, is a type of equipment used in laboratories to create a clean and controlled environment for conducting experiments or handling sensitive materials. It is designed to provide a laminar flow of air to protect samples, equipment, and work surfaces from contamination.
Key Features and Design :
Airflow Pattern :
Laminar Flow : The cabinet provides a uniform, uninterrupted flow of air in a single direction (typically from the back of the cabinet to the front) over the work surface. This helps to protect the work area from particulate contamination.
Horizontal or Vertical Flow : Laminar flow benches can be designed with horizontal airflow (where air flows from the back towards the front) or vertical airflow (where air flows from the top towards the work surface).
HEPA Filters :
High-Efficiency Particulate Air (HEPA) Filters : These filters are used to remove airborne particles, including dust, bacteria, and other contaminants, ensuring that the air entering the work area is clean.
Filter Efficiency : HEPA filters are typically rated to capture 99.97% of particles 0.3 microns in diameter.
Work Surface :
Material : The work surface is usually made from materials that are resistant to chemical damage and easy to clean, such as stainless steel or phenolic resin.
Sash :
Adjustable Sash : Many laminar flow benches have a front sash that can be adjusted to control access to the work area and maintain airflow efficiency.
Lighting :
Integrated Lighting : Most laminar flow cabinets come with built-in lighting to illuminate the work area, providing visibility and ease of use.
Types of Laminar Flow Benches :
Horizontal Laminar Flow Bench :
Design : Air is drawn in from the back of the cabinet and flows horizontally across the work surface.
Applications : Commonly used for handling non-toxic, non-hazardous materials where a horizontal airflow is sufficient.
Vertical Laminar Flow Bench :
Design : Air flows vertically from the top of the cabinet downwards towards the work surface.
Applications : Preferred when working with sensitive or small samples that require protection from airborne contaminants.
Types of Laminar Flow Benches :
Horizontal Laminar Flow Bench :
Design : Air is drawn in from the back of the cabinet and flows horizontally across the work surface.
Applications : Commonly used for handling non-toxic, non-hazardous materials where a horizontal airflow is sufficient.
Vertical Laminar Flow Bench :
Design : Air flows vertically from the top of the cabinet downwards towards the work surface.
Applications : Preferred when working with sensitive or small samples that require protection from airborne contaminants.
Various industries
